Introduction
This wide metal detector can be applied to detect if some extra-wide textile products, such as bedding, non-woven fabrics, cloth, etc., contain magnetic contaminants.

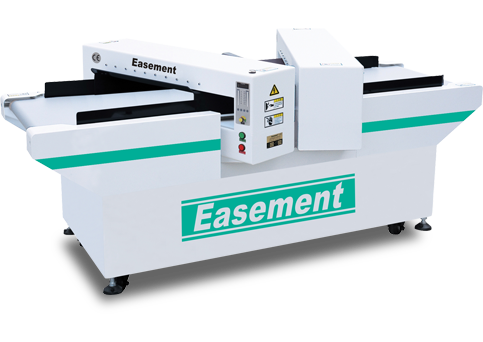

HD-2680T Network-Based Metal Detector
This network-based metal detector is suitable for detecting broken needles, nails, wires, staples and other ferromagnetic metal impurities in textile prodcuts such as clothing, sheets, plush toys, etc.
Precision Sensor
CE Certification
RS Port
Light/Thick Materials Sorting
Position Indicator
Yield Stats
Hang-Up Prevention
Auto-Alarm
Auto-Start
Auto-Return
ECO Mode
Conveyor Belt Anti-Deflection
Model
HD-2680T
Technical Parameter
Model
HD-2680T
Detection Mode
Magnetic Induction
Channel Size
570 (W) x 100 (H) mm
Detection Accuracy
≥FeФ0.8 mm
Alarm Mode
Buzzer, Alarm Light
Sensitivity Range
Level 1-10
Belt Speed
[Appr.] 35 m/min
Supply Voltage
AC220 V, 50 Hz
Power Consumption
100 W
Temperature
0-40˚C
Humidity
10%-90% (non-condensing)
Weight
[Appr.] 420 kg
Size
2224 (L) * 1195 (W) * 965 (H) mm
